4-4 PRESSURE TRANSMITTER RPT-5F
FEATURES:
* Hammer union pressure fitting, resistant to shock and vibration.
* Adopt unique designed by using break through the traditional strain gauge structure to ensure
excellent performance as high accuracy, safe and long term stability in extremely harsh
environments
* Use for cementing, fracturing and acidizing in oil well.
SPECIFICATIONS:
Capacity:0 ~ 200 MPa;
Combine error:≤±0.25 %FS
(Non-linearity:≤±0.25 %FS
Hysteresis :≤±0.10 %FS
Repeatability):≤±0.10 %FS
Power supply :10~ 28 Vdc
Output: 4 ~ 20 mA ;
Temperature effect on span:≤±0.3%FS/10℃
Temperature effect on zero:≤±0.3%FS/10℃
Stability:≤±0.25 %FS/ 6 months
Response times:≤0.25 m Sec. to 90%FS.
Insulation Resistance:≥500 MΩ(100Vdc)
Compensation temperature:0 ~ + 60℃
Operating temperature:-40～+85℃
Storage temperature:-50 ~ +120℃
Safe overload:150%FS
Ultimate overload:200%FS
Hipot 500V dc 1 minute sustain between case and pins < 5 mA leakage.
Case material:SS 316

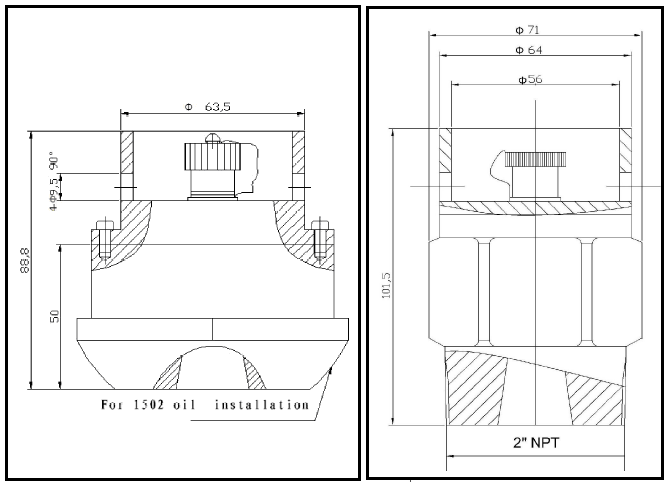

OUTLINE SIZE: (reference only)
